徕卡ER i照明瞄准器
功能全面，精准，便携

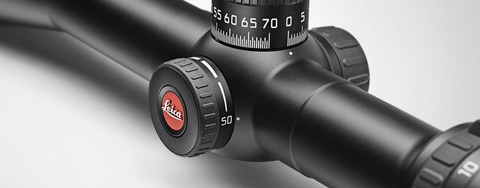

Leica ER 6.5-26x56 LRS
Designed specifically for long range shooting, the new ER 6.5–26 x 56 LRS gives you exceptionally high levels of magnification, light transmission and contrast. In particular, minimal colour-fringing ensures that images seen through the scope are of the best optical quality, even at distance. Thanks to its finely tuned elevation tracking, users can achieve absolute precision when sighting in and setting the planned point of impact. What’s more, the ER 6.5–26 x 56 LRS has a large eye relief, making it safer for use with calibres required for longer-range shots.
LEICA ER LRS (6.5-26x56)
Order-Number: 56 080 / 4a
| Package includes | riflescope caps for front lens and eyepiece, cleaning tissue |
| Front lens diameter | 56 mm |
| Magnification | 6.5 –26 x |
| Zoom | 4 x |
| Field of view at max. magnification (m/100 m) | 4 ft/1.45 m |
| Field of view at min. magnification (m/100 m) | 18 ft/5.5 m |
| Eye relief | 3.9 in/100 mm |
| Exit pupil | 0.08 – 0.34 in / 2.15– 8.55 mm |
| Parallax | adjustable, 50 m to infinity |
| Diopter compensation | –4/+3 dpt |
| Coating | AquaDura® lens coating |
| Transmission | TD/ TN ≥ 90 % |
| Central tube diameter | 30 mm |
| Impact point correction | 1 click = 0.5 cm /100 m 120 x 70 cm |
| Front lens filter thread | - - |
| Length | 14.8 in / 375 mm |
| Weight | without track: 26.5 oz / 750 g - - |
| Waterproof | waterproof to 13.1 ft / 4 m nitrogen-filled |
| Available reticles | 4a, Ballistic, Magnum Ballistic, (Long range suitable) |
| Reticle illumination | no |
| Automatic switch-off | 3 min, ± 70° |
| Automatic switch-on | yes, activated by position and / or movement |
| Battery | - - |
| Order No. (Reticle) | 56 080 (4a) - - (4a with track) - - (4a with BDC) - - (4a with BDC and track) 56 081 (Magnum ballistic) 56 082 (Ballistic) - - (Ballistic with track) |
Specifications are subject to change without notice

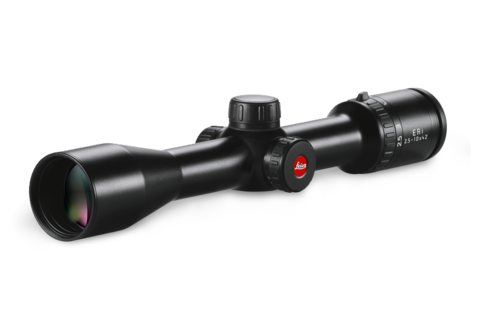

徕卡 ER i 2.5-10x42
此瞄准镜的放大倍率范围使它可以在几乎所有的野外运动情况下使用。出色的光学性能和大视场，是你成功的重要保证。长的出瞳距离让你射击时安全舒适。通用的放大倍率范围 (2.5-10倍)，管身细窄重量轻，大视场，长出瞳距离，高透光率，快速可调节十字线 (ASV)。
LEICA ER i (2.5-10x42)
Order-Number: 55 020 / 4a
| Package includes | riflescope caps for front lens and eyepiece, cleaning tissue |
| Front lens diameter | 42 mm |
| Magnification | 2.5 –10 x |
| Zoom | 4 x |
| Field of view at max. magnification (m/100 m) | 12.8 ft/3.9 m |
| Field of view at min. magnification (m/100 m) | 45.9 ft/14.5 m |
| Eye relief | 3.9 in/100 mm |
| Exit pupil | 0.16 – 0.59 in / 4.1 – 14.9 mm |
| Parallax | 328 ft/100 m |
| Diopter compensation | –4/+3 dpt |
| Coating | AquaDura® lens coating |
| Transmission | TD/ TN ≥ 90 % |
| Central tube diameter | 30 mm |
| Impact point correction | 1 click = 1 cm /100 m (~~1/3 MOA), 180 x 180 cm |
| Front lens filter thread | M 46 x 0.75 mm |
| Length | 12.76 in / 324 mm |
| Weight | without track: 16.9 oz / 480 g with track: 18.3 oz / 520 g |
| Waterproof | waterproof to 13.1 ft / 4 m nitrogen-filled |
| Available reticles | 4a, Ballistic |
| Reticle illumination | yes, dot, suitable for twilight use |
| Automatic switch-off | 3 min, ± 70° |
| Automatic switch-on | yes, activated by position and / or movement |
| Battery | 1 x CR 2032 |
| Order No. (Reticle) | 55 020 (4a) 55 021 (4a with track) 55 022 (4a with BDC) 55 023 (4a with BDC and track) - - (Magnum ballistic) 55 010 (Ballistic) 55 011 (Ballistic with track) |
Specifications are subject to change without notice

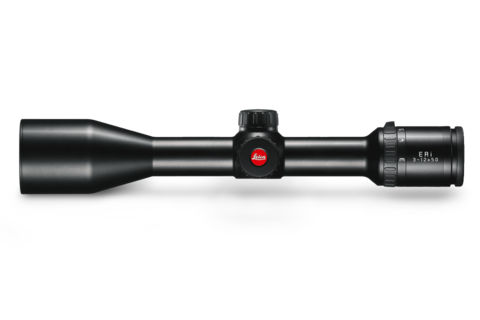

徕卡 ER i 3-12x50
优质的镜头，坚固结构和照明瞄准器——这些都是徕卡ERi系列的关键特征。细长结构是ERi步枪望远镜瞄准器的特性。短接目镜和长筒可提供各种调整幅度，适合安装于各种步枪。超亮度ERi 3-12x50步枪望远镜瞄准器具有12倍放大功能，可建立理想的瞄准条件，准确命中远距离目标。订购ER i3-12x50可随赠快速十字线调校。
LEICA ER i (3-12x50)
Order-Number: 56 020 / 4a
| Package includes | riflescope caps for front lens and eyepiece, cleaning tissue |
| Front lens diameter | 50 mm |
| Magnification | 3 –12 x |
| Zoom | 4 x |
| Field of view at max. magnification (m/100 m) | 10.5 ft/3.2 m |
| Field of view at min. magnification (m/100 m) | 36 ft/11.5 m |
| Eye relief | 3.9 in/100 mm |
| Exit pupil | 0.16 – 0.59 in / 4.1 – 14.9 mm |
| Parallax | 328 ft/100 m |
| Diopter compensation | –4/+3 dpt |
| Coating | AquaDura® lens coating |
| Transmission | TD/ TN ≥ 90 % |
| Central tube diameter | 30 mm |
| Impact point correction | 1 click = 1 cm /100 m (~~1/3 MOA), 180 x 180 cm |
| Front lens filter thread | M 46 x 0.75 mm |
| Length | 12.76 in / 324 mm |
| Weight | without track: 16.9 oz / 480 g with track: 18.3 oz / 520 g |
| Waterproof | waterproof to 13.1 ft / 4 m nitrogen-filled |
| Available reticles | 4a, Ballistic |
| Reticle illumination | yes, dot, suitable for twilight use |
| Automatic switch-off | 3 min, ± 70° |
| Automatic switch-on | yes, activated by position and / or movement |
| Battery | 1 x CR 2032 |
| Order No. (Reticle) | 55 020 (4a) 55 021 (4a with track) 55 022 (4a with BDC) 55 023 (4a with BDC and track) - - (Magnum ballistic) 55 010 (Ballistic) 55 011 (Ballistic with track) |
Specifications are subject to change without notice
