徕卡 MAGNUS
高品质

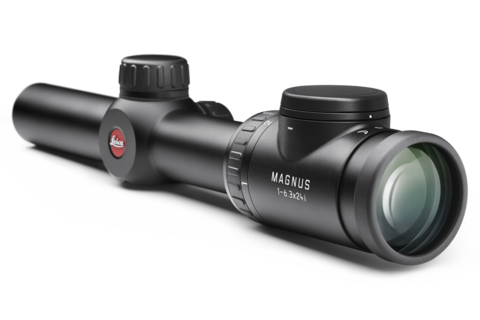

徕卡 Magnus 1-6.3x24
运动物体快速射击时，迅速出手至关重要。Magnus 1-6.3x24是您保证成功保障。其非常广阔的视场44米/142英尺（1倍放大倍率时）保证完全控制局面。1〜6.3倍的变焦范围是目前市场最大的变焦范围的枪瞄之一。其小巧的体积和出色的性能使Magnus 1-6.3x24成为您非常可靠灵活的野外运动伴侣。
徕卡 MAGNUS i (1-6.3x24)
Order-Number: 52100 (Plex), 52101 (Plex with track), 52110 (L-3D), 52111 (L-3D with track), 52120 (4a), 52121 (4a with track), 52140 (CD i), 52141 (CD i with track)
| Package includes | riflescope caps for front lens/eyepiece, cleaning tissue |
| Front lens diameter | 24 mm |
| Magnification | 1 – 6.3 x |
| Zoom | 6.3 x |
| Field of view at max. magnification (m/100 m) | 7.1 yds / 6.5 m |
| Field of view at min. magnification (m/100 m) | 47.2 yds / 43.2 m |
| Eye relief | > 3.5 in / 90 mm |
| Exit pupil | 3.8 - 12.4 mm |
| Parallax | 100 m |
| Diopter compensation | –4/+3 dpt |
| Coating | AquaDura® lens coating |
| Transmission | approx. 91 % |
| Mounting option | 30 mm tube / Zeiss internal track |
| Impact point correction | 1 click = 1 cm/100 m (≈1⁄3 MOA), 200 x140 cm |
| Front lens filter thread | - - |
| Length | 107 in / 272 mm |
| Weight | 19.2 oz / 544 g [with track: 22.9 oz / 570 g] |
| Waterproof | waterproof to 13.1 ft / 4 m; nitrogen-filled |
| Available reticles | 4a, Plex, L-3D, CDi |
| Reticle illumination / type | yes/dot |
| Automatic switch-off | 3 min, ± 75° |
| Automatic switch-on | yes, activated by position and/or movement |
| Order No. (Reticle) | |
| 4a / with track | 52120 / 52121 |
| 4a with BDC / with track | -- |
| Plex / with track | 52100 / 52101 |
| Plex with BDC / with track | -- |
| L-3D / with track | 52110 / 52111 |
| L-3D with BDC / with track | -- |
| Ballistic / with track | - - |
| Ballistic with BDC / with track | - - |
| CD i / with track | 52140 / 52141 |
| CD i with BDC / with track | - - |
Specifications are subject to change without notice

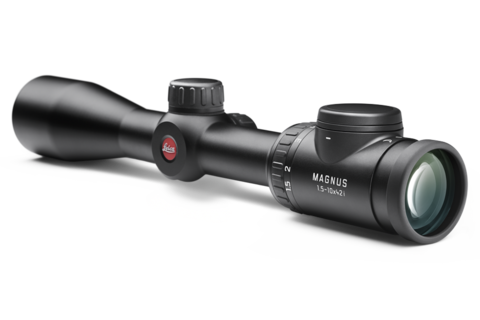

徕卡 Magnus 1.5-10x42
在或长或短距离的范围内保证可靠精确的射击。 42毫米口径物镜和大变焦范围的枪瞄，可以保证您在任何光线条件下高位快速准确地瞄准和射击。在使用大口径步枪射击时，其长出瞳距离提供舒适安全的瞄准和射击。
徕卡 MAGNUS i (1.5-10 x 42)
Order-Number: 53100 (Plex), 53101 (Plex with track), 53102 (Plex with BDC), 53103 (Plex with BDC and track), 53130 (4a), 53131 (4a with track), 53132 (4a with BDC), 53133 (4a with BDC and track), 53120 (L-3D), 53121 (L-3D with track), 53122 (L-3D with BDC
| Package includes | riflescope caps for front lens/eyepiece, cleaning tissue |
| Front lens diameter | 42 mm |
| Magnification | 1.5 – 10 x |
| Zoom | 6.7 x |
| Field of view at max. magnification (m/100 m) | 4.4 yds / 4.1 m |
| Field of view at min. magnification (m/100 m) | 28.4 yds / 26 m |
| Eye relief | > 3.5 in / 90 mm |
| Exit pupil | 4.2 - 12.4 mm |
| Parallax | 100 m |
| Diopter compensation | –4/+3 dpt |
| Coating | AquaDura® lens coating |
| Transmission | approx. 91 % |
| Mounting option | 30 mm tube / Zeiss internal track |
| Impact point correction | 1 click = 1 cm/100 m (~~1⁄3 MOA), 150 x140 cm |
| Front lens filter thread | M 46 x 0.75 mm |
| Length | 124.8 in / 317 mm |
| Weight | 21.9 oz / 620 g [with track: 22.9 oz / 650 g] |
| Waterproof | waterproof to 13.1 ft / 4 m; nitrogen-filled |
| Available reticles | 4a, Plex, L-3D, Ballistic, CDi |
| Reticle illumination / type | yes/dot |
| Automatic switch-off | 3 min, ± 75° |
| Automatic switch-on | yes, activated by position and/or movement |
| Order No. (Reticle) | |
| 4a / with track | 53130 / 53131 |
| 4a with BDC / with track | 53132 / 53133 |
| Plex / with track | 53100 / 53101 |
| Plex with BDC / with track | 53102 / 53103 |
| L-3D / with track | 53120 / 53121 |
| L-3D with BDC / with track | 53122 / 53123 |
| Ballistic / with track | 53110 / 53111 |
| Ballistic with BDC / with track | 53112 / 53113 |
| CD i / with track | 53140 / 53141 |
| CD i with BDC / with track | - - |
Specifications are subject to change without notice

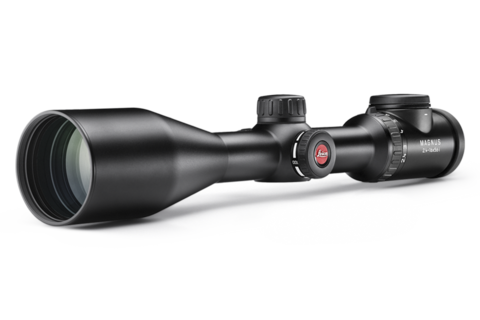

徕卡 Magnus 2.4-16x56
Magnus 2.4-16x56，是Magnus系列中图像最亮的型号，保证运动员能在微弱的光线下快速决断。大口径的物镜，中焦段倍率和91％的最大化透光率保证最后时刻射击的最佳识别。16倍最大放大倍率，完美确保较长距离瞄准和射击的准确性。
徕卡 MAGNUS i (2.4-16 x 56)
Order-Number: 54100 (Plex), 54101 (Plex with track), 54102 (Plex with BDC), 54103 (Plex with BDC and track), 54101 (Ballistic), 54111 (Ballistic with track), 54112 (Ballistic with BDC), 54113 (Ballistic with BDC and track), 54130 (4a), 54131 (4a with trac
| Package includes | riflescope caps for front lens/eyepiece, cleaning tissue |
| Front lens diameter | 56 mm |
| Magnification | 2.4 – 16 x |
| Zoom | 6.7 x |
| Field of view at max. magnification (m/100 m) | 2.8 yds / 2.6 m |
| Field of view at min. magnification (m/100 m) | 28.4 yds / 17 m |
| Eye relief | > 3.5 in / 90 mm |
| Exit pupil | 3.5 - 12.4 mm |
| Parallax | adjustable, 50 m to infinity |
| Diopter compensation | –4/+3 dpt |
| Coating | AquaDura® lens coating |
| Transmission | approx. 91 % |
| Mounting option | 30 mm tube / Zeiss internal track |
| Impact point correction | 1 click = 1 cm/100 m (≈1⁄3 MOA), 150 x140 cm |
| Front lens filter thread | M 58 x 0,75 mm |
| Length | 360 mm |
| Weight | 27.7 oz / 785 g / [with track: 28.7 oz / 815 g] |
| Waterproof | waterproof to 13.1 ft / 4 m; nitrogen-filled |
| Available reticles | 4a, Plex, Ballistic |
| Reticle illumination / type | yes/dot |
| Automatic switch-off | 3 min, ± 75° |
| Automatic switch-on | yes, activated by position and/or movement |
| Order No. (Reticle) | |
| 4a / with track | 54130 / 54131 |
| 4a with BDC / with track | 54132 / 54133 |
| Plex / with track | 54100 / 54101 |
| Plex with BDC / with track | 54102 / 54103 |
| L-3D / with track | - - |
| L-3D with BDC / with track | - - |
| Ballistic / with track | 54101 / 54111 |
| Ballistic with BDC / with track | 54112 / 54113 |
| CD i / with track | - - |
| CD i with BDC / with track | - - |
Specifications are subject to change without notice
